IP COMPACT WASH SET
Description
The IP Compact Wash stands out as a premium lighting solution for professionals who demand flexibility, durability, and superior performance. Featuring 6×20W 6-in-1 LEDs, it delivers exceptional color rendering and smooth color mixing across a full spectrum, making it perfect for creating dynamic atmospheres in live events, architectural lighting, and temporar... Read more
The IP Compact Wash stands out as a premium lighting solution for professionals who demand flexibility, durability, and superior performance. Featuring 6×20W 6-in-1 LEDs, it delivers exceptional color rendering and smooth color mixing across a full spectrum, making it perfect for creating dynamic atmospheres in live events, architectural lighting, and temporary installations.
This fixture is part of a set of eight projectors housed in a flight case with integrated charging functionality. Simply place the fixtures into the flight case, connect them to the internal power connectors, and link the case’s external power input to a mains outlet for quick and convenient recharging.
With an integrated rechargeable battery providing up to 20 hours of continuous operation, the IP Compact Wash frees users from constant power connections. Coupled with wireless DMX and app-based control, it offers maximum freedom and flexibility during setup and operation. Additionally, wireless pixel control enables precise LED mapping for advanced and creative visual effects.
The IP65-rated housing ensures full protection against water and dust, making the fixture suitable for both indoor and outdoor use. Its compact and lightweight design allows effortless transport and installation without compromising robustness and reliability.
In summary, the IP Compact Wash combines professional-grade performance, portability, advanced control options, and rugged durability, making it an ideal choice for demanding lighting applications.
Read lessHighlights
Advanced Color Performance
Each fixture features 6×20W 6-in-1 LEDs that deliver vibrant colors, smooth mixing, and full-spectrum output, enabling the creation of dynamic lighting effects and engaging atmospheres for live events, architectural projects, and temporary installations.
Maximum Autonomy and Portability
The integrated rechargeable battery provides up to 20 hours of continuous operation, eliminating the need for fixed power sources. The set includes a flight case with built-in charging, simplifying transport, placement, and recharging, making it ideal for mobile or outdoor applications.
Versatility and Complete Control
The fixture supports wireless DMX, app-based control, and pixel mapping, offering maximum flexibility for managing LED effects and colors. The IP65-rated housing allows safe operation indoors and outdoors, while the compact and lightweight design ensures convenience without compromising durability.
Product details
| The compact and lightweight IP65-rated enclosure facilitates transport and installation in both indoor and outdoor environments. | |
| It is equipped with 6×20W 6-in-1 LEDs (RGBWA+UV) that enable dynamic visual effects and fully customizable lighting atmospheres. | |
| It supports DMX addressing from 001 to 512, ensuring seamless integration into any lighting network. | |
| It is compatible with extended DMX protocols and 2, 6, 8, and 11 channel modes, allowing flexible programming for different venues. | |
| The high-resolution 0–100% dimmer features four selectable curves optimized for theatrical, broadcast, and live environments. | |
| The variable-frequency strobe, from ultra-slow to high-speed, provides rhythmic accents and chase sequences. | |
| The fixture includes manual RGBWA+UV color control and Correlated Color Temperature (CCT) management for film and photographic workflows. | |
| Six selectable PWM frequencies ensure flicker-free performance across live events, studios, and broadcast applications. | |
| he device offers 32 preloaded static color presets and 4 built-in programs (Auto, Fade, Jump, and Pulse) with adjustable speed for rapid setup without programming. | |
| The integrated rechargeable battery provides up to 20 hours of continuous operation with 4–6 hours charging time, while the charge-and-operate function allows uninterrupted use during recharging and includes an 8-unit flight case with integrated charging. |
| Input Voltage | AC 110V–250V 50/60Hz |
| Power Consumption | 156 W |
| Battery | Integrated rechargeable battery |
| Battery Runtime | Up to 20 hours (depending on "Run Time" settings) |
| Charging Time | 4–6 hours |

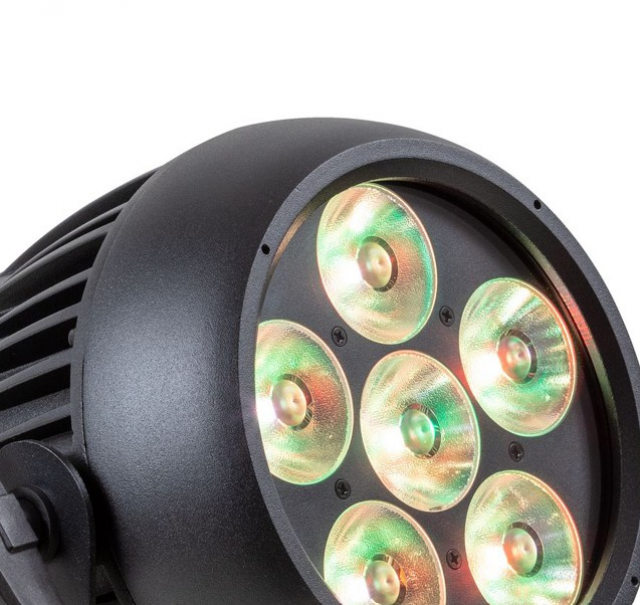

| Light Source | 6×20W RGBWAUV LEDs (6-in-1) |
| Beam Angle | 25° |
| LED Life Span | 50,000 hours |
| Flicker-Free | Yes, adjustable refresh rate from 600Hz to 25kHz |

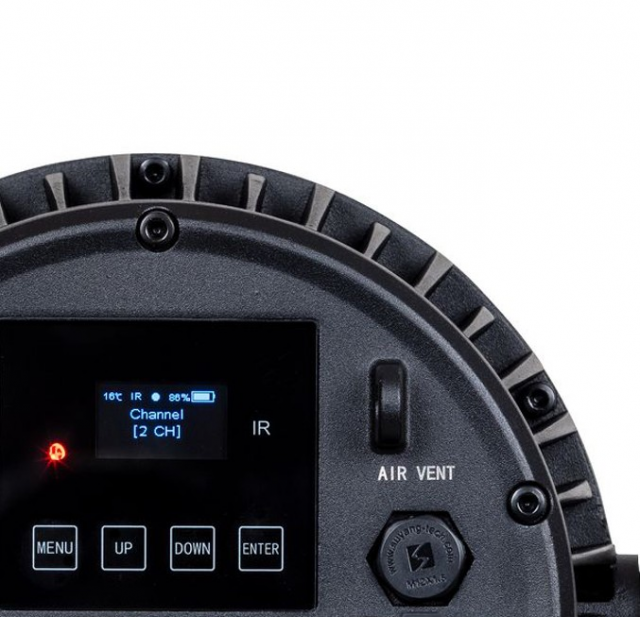

| Display | 1.06" backlit LCD with touchscreen controls |
| Color Rendering Index (CRI) | ≥ 80 |
| Color Range | Nearly unlimited color mixing / Millions of color combinations |
| Color Temperature | 23 selectable settings (2000°K – 10000°K) |
| Dimmer / Strobe | 0%–100% (0–255) Dimmer, 0–255 Strobe with variable speed |
| Ambient Temperature | -10°C – 40°C (14°F – 104°F) |
| DMX Channels | Multiple modes |
| Control Mode | Manual, Auto, IR, Wi-Fi, Wireless 2.4GHz, DMX, RDM, Master/Slave, Sound |
| Positioning / Mounting | Adjustable brackets for flexible positioning, suitable for truss or overhead installation (use safety cables and clamps) |

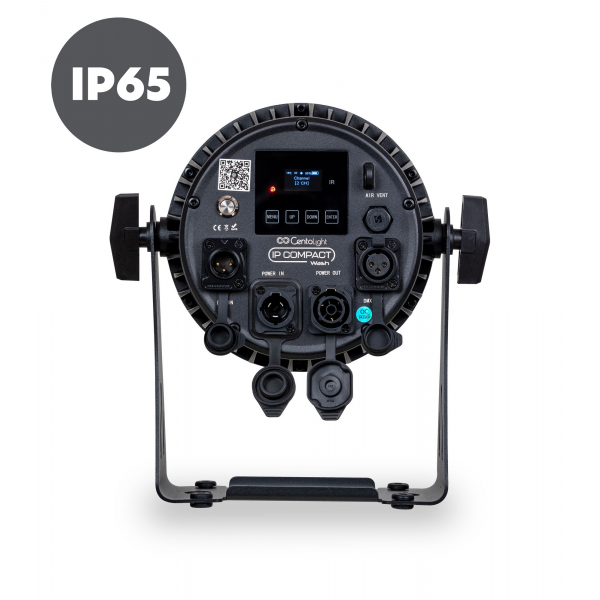

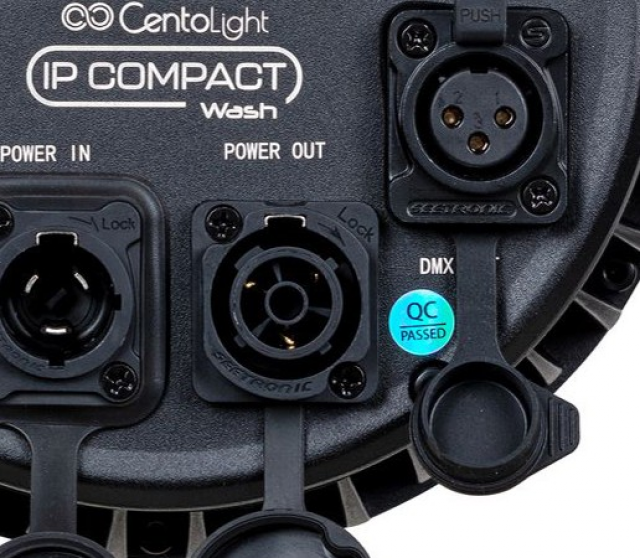

| DMX Connectors | Waterproof 3-pin XLR Input/Output |
| Power Connectors | Waterproof TrueCon Input/Output |
| IP Grade | IP65 |
| Cooling | Natural cooling, silent operation |
| Material | Aluminum |
| Color | Black |
| Fixture Dimensions (WxDxH) | 235 × 140 × 285 mm (9.25 × 5.51 × 11.22 in.) |
| Product Weight | 4.5 kg (9.92 lbs.) |

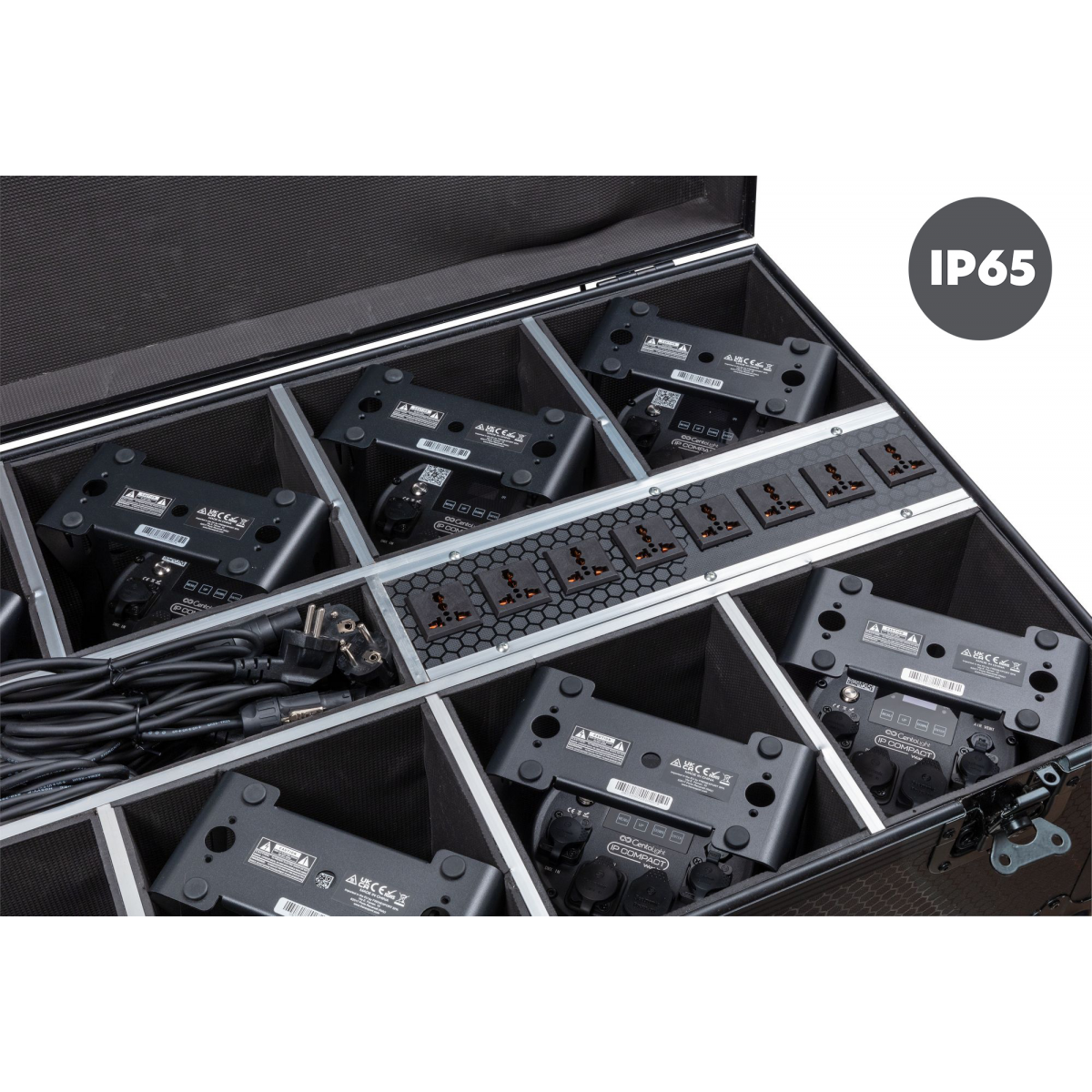

| IP Compact Wash Flight Case | |
| Power Connection | PowerCon |
| Dimensions (WxDxH) | 870 × 560 × 410 mm |
| Weight (with 8 devices inside) | 56.6 kg |
