SPIRE LS10000
Description

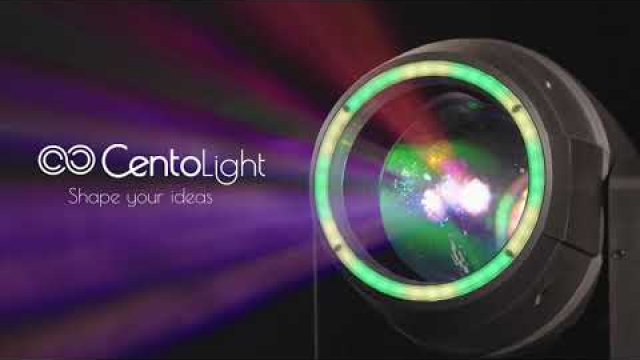

This Laser Beam moving head of the Spire Series is an ulta compact, lightweight and stylish moving head with a White Laser source, integrated with a unique high resolution optical system and a magic and vivid dynamic lighting effect with the 30x 0.2W 3-In-1 RGB LEDs strip light on the head.
The fixture features a 0.7° beam angle which helps to provide an ultr... Read more
This Laser Beam moving head of the Spire Series is an ulta compact, lightweight and stylish moving head with a White Laser source, integrated with a unique high resolution optical system and a magic and vivid dynamic lighting effect with the 30x 0.2W 3-In-1 RGB LEDs strip light on the head.

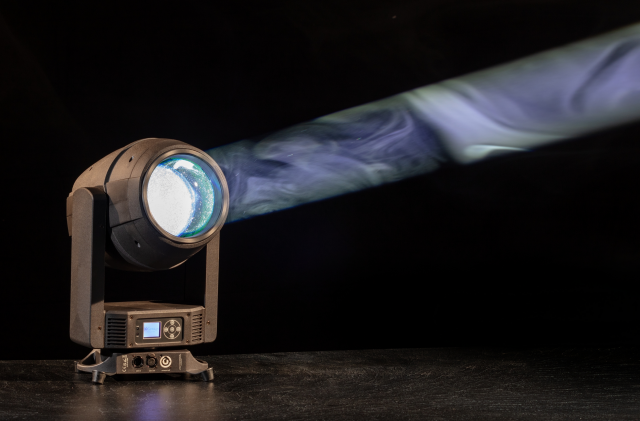

The fixture features a 0.7° beam angle which helps to provide an ultra long-throw beam effect that is close to a parallel beam, and it is designed with a range of effects: 19 static gobos, 17 dichroic colors, 6-color wheel, 2 prism wheels witha a total of 4 different prism, frost, focus, etc. The Spire LS10000 provides a 360° continuous, fast and smooth Pan/Tilt movement with variable speed which delivers an even more vivid visual effect to the show. It supports DMX and RDM (Remote Device Management) control.
The fixture’s exterior housing is beautifully balanced and based on a modern design philosophy, with a supremely harmonious interior structure for remarkable control.
The body of the Spire LS10000 has more than just a striking look, the 2 fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.
Its fast and quiet operation makes the Spire LS10000 a perfect option for indoor application like small concerts, conference halls, Live events and Club.
Read lessMedia
Highlights

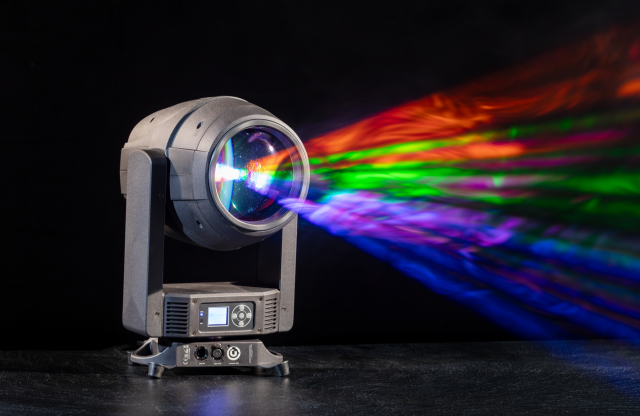

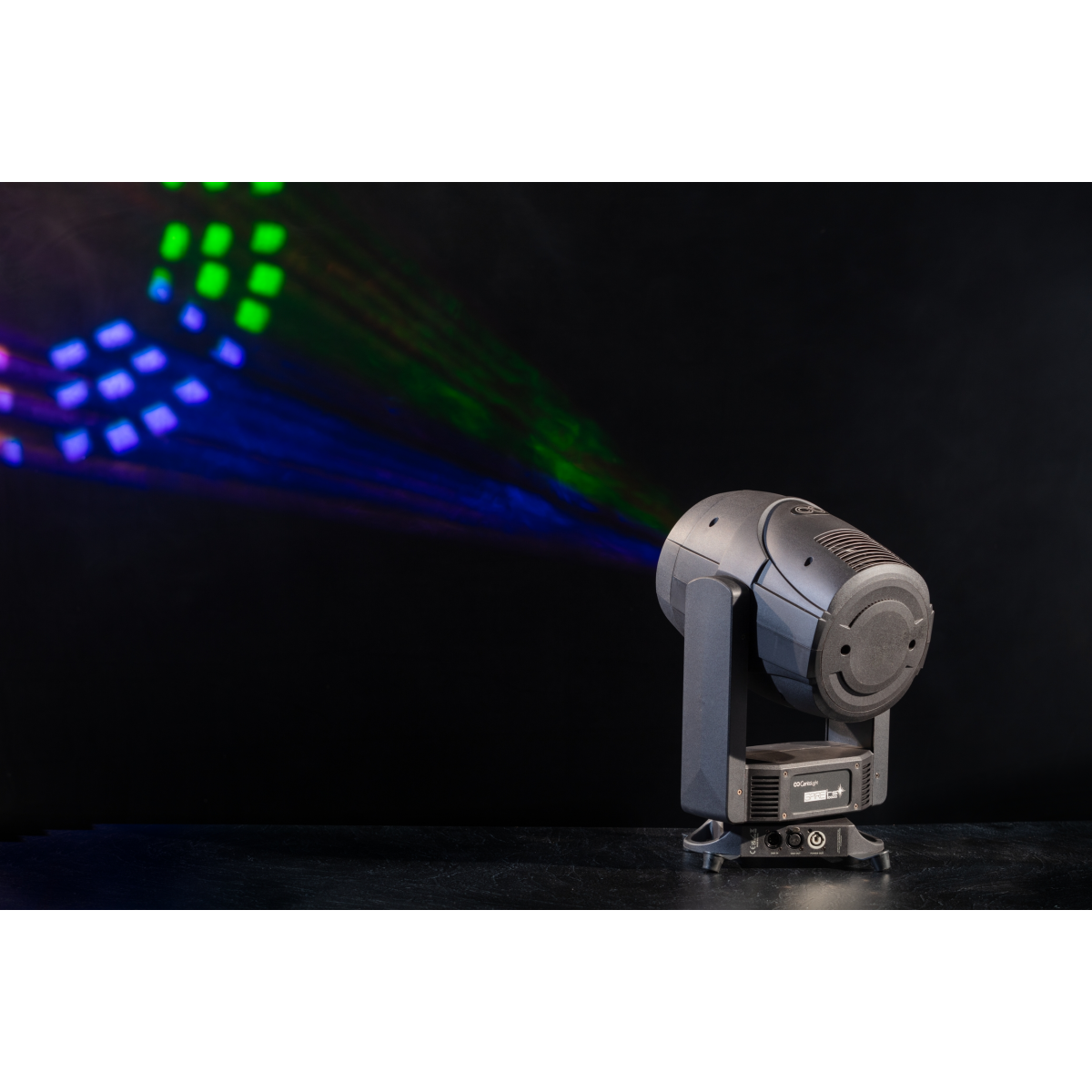

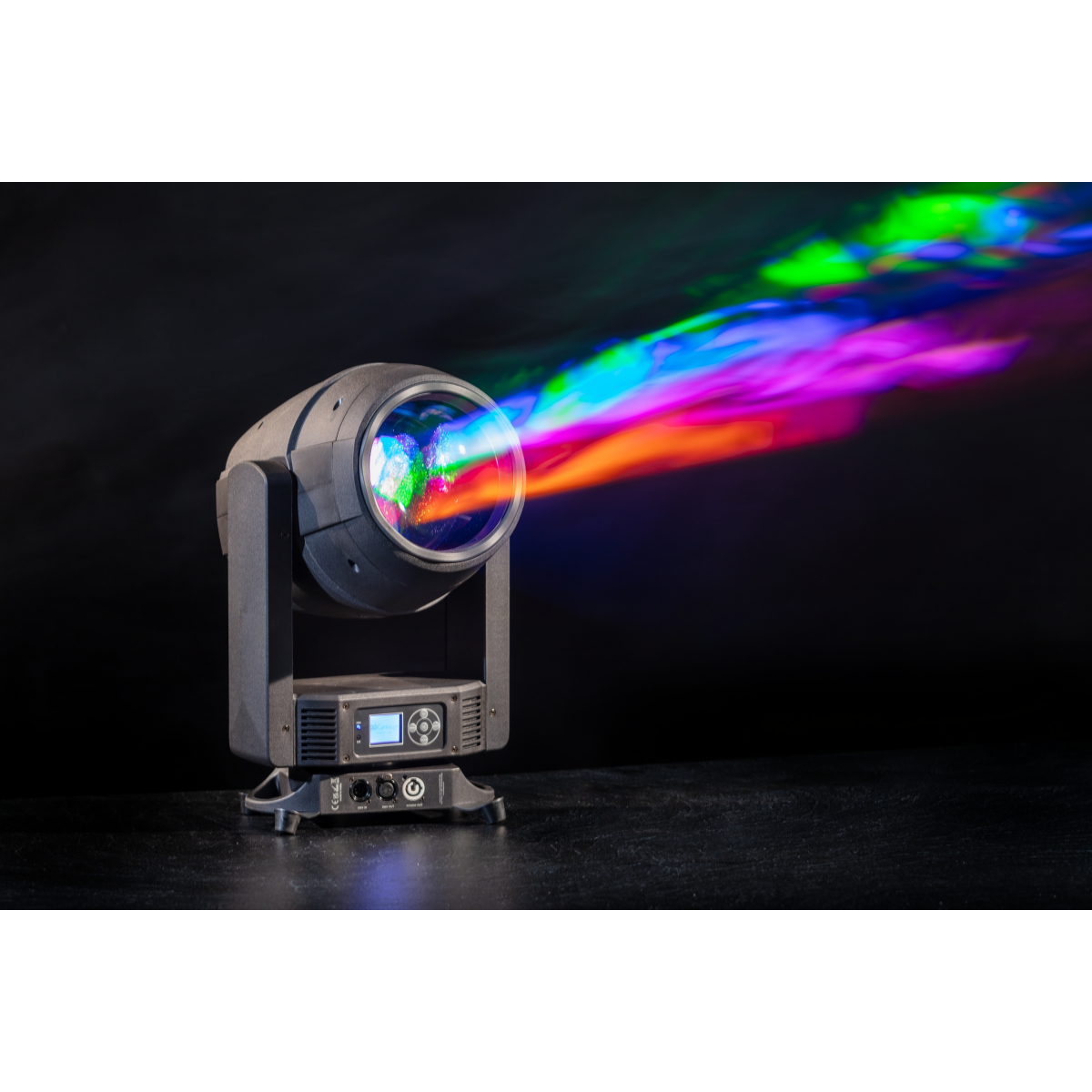

Mid-air effect with morphing function
The range of effect is very wide and complete: 1 gobo wheel with 19 gobos, 2 wheel with 4 prisms on two different channel and indipendently rotating in both direction wich can be overlapped creating morphing effects, 17 colour and a 6 colour effect wheel. All these effects are enhanced by the Laser sourse and by the visibility of the aerial colours, giving birth to never seen before mid-air effect.
Extremely light and compact
Spire LS 10000 is a ultra compact, lightweight and stylish moving head and thanks to Centolight innovative White Laser source, it's size is just 268 x 207 x 423.7 mm (10.55 x 8.15 x 16.68 in) and weight 9.7 kg - 21.38 lbs.
Laser lamp with high energy efficency
Its power consumption and luminous efficiency are excellent. The Laser lamp need only 100 Watt, the equivalent of a low consumption fixture, but the resulting light output easily exceeds various high-power moving light. The Laser sours lasts for approximately 30.000 hours ( the normal life of more then 15 years of use of a Rental company ) with minimal decay in luminouse efficiency .
360° endless Pan and Tilt rotation
In addition to the typical features of the Moving head, 540 ° pan and 265° tilt 16 bit rotation, the LS 10000 delivers a new and exciting function, the LS 10000 offers endless Pan and Tilt Rotation in both directions, that can be controlled at various speeds.
Product details
| high efficiency White Laser Lamp 100w | |
| 30x 0.2W 3-In-1 RGB front strip LEDs | |
| Lamp Life Span of 30.000 H | |
| Silent operation | |
| Set of high resolution and precise optics with 0.7° Beam angle | |
| 360° continuous, fast and smooth Pan/Tilt movement | |
| Color wheel with 17 dichroic colors + white | |
| 6-color wheel effect | |

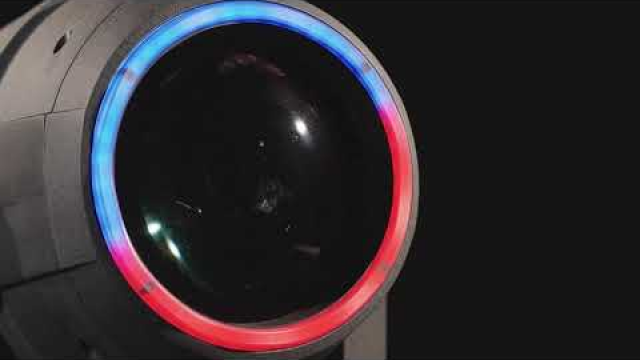

| Neon ring effect with different built-in macro | |
| Static gobo wheel with 19 gobos | |
| 2 Prism wheel with 4 Prism and overlapping , morphing effect | |
| 0-25Hz shutter/strobe effect | |
| Shielded input signal protection for stable signal without interference |
| Light Sources | high efficiency White Laser Lamp 100w |
| front LED strip | 30x 0.2W 3-In-1 RGB |
| Color Temperature | 6000K |
| Beam Angle | 0.7° |
| Lamp average lifespan | 30.000 hrs |
| Flicker-free | Yes |

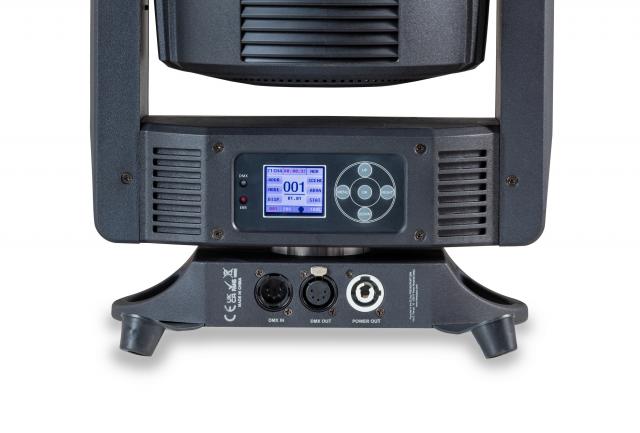

| Display System | LCD display with selectable language (Chinese or English), reversible |
| Cooling System | noise-free cooling system |
| Pan | 360° continuous / 540° 8-16 bit low noise |
| Tilt | 360° continuous / 270°8-16 bit low noise |
| Control Mode | DMX512/Master-slave/Auto/Sound |
| Color Wheel | 1 color wheel with 17 dichroic colors+white, rainbow effect and variable direction and speed |
| Color effect wheel | 6-colors wheel with variable direction and speed |
| Static Gobo Wheel | 1 static gobo wheel with 19 gobos+white |
| 1 Prism Wheels | 8-facet circular prism with variable speed and direction |
| 2 Prism Wheel | 6-facet linear prism/16-facet circular prism/8+16-facet circular prism with variable speed and direction |
| Effect on Prism | overlapping , morphing effect |
| Circle Effect | ring effect with different built-in macro effects with variable speed |
| Dimmer/Strobe | 0%-100% Dimmer, 0-25Hz shutter/strobe with variable speed |
| DMX control | 25CH / 28CH modes |
| Voltage | 100-240V,50-60Hz |
| Power Consumption | 90W |
| Working Temperature | -25°C to 45°C |
| Dimensions (WxDxH) | 268 x 207 x 423.7 mm (10.55 x 8.15 x 16.68 in) |
| Weight | 9.7 kg - 21.38 lbs. |
| Package Size (WxDxH) | 400 x 310 x 530 mm (15.75 x 12.20 x 20.87 in) |
| Package Weight | 12.2 kg - 26.90 lbs. |
